Cleanroom Side Frame Roll Forming Machines – Custom Roll Forming Machine Manufacturer

Purification Equipment Border & Side Panel Forming Machinery

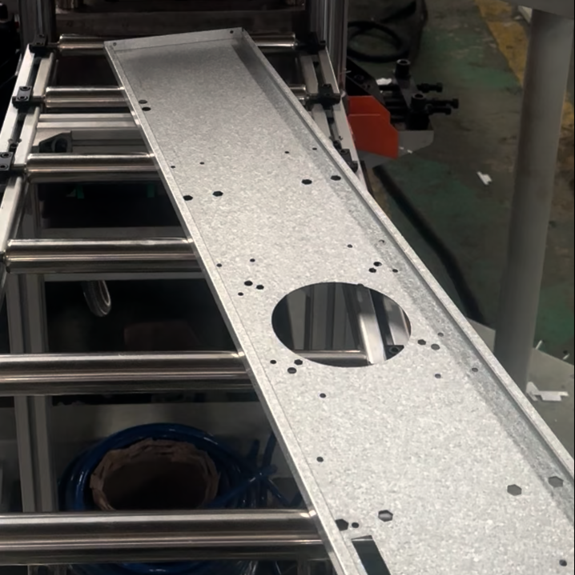

This roll forming machine produces side frames and border profiles for cleanroom panels, purification equipment enclosures, and medical cabinets. The line forms C‑channel or L‑angle sections from 0.8‑1.2mm stainless steel or galvanized steel coil. Integrated punching creates mounting holes and interlocking tabs. Smooth edges prevent contamination. Speeds up to 15 m/min, cut‑off tolerance ±0.5mm. Quick changeover between different frame sizes. Ideal for cleanroom construction and medical equipment manufacturers requiring strong, hygienic frames.

Brand: SAVANY
Machine Type: Roll forming machine / Press brake / Custom production line
Color: Custom / Customizable
Capabilities: Roll forming, punching, shearing
Roll Forming Material: SPCC/SPCD/SPCE/SGCC/CGCC/304/5052
Profile Dimensions: Custom
Customization Level：100% custom
Payment Terms: T/T
Lead Time: 90 working days
Place of Origin: Guangdong, China

Contact Us

Description

Cleanroom Side Frame Rolled Equipment

– Sturdy, Hygienic Frames for Controlled Environments

The cleanroom side frame roll forming machine is designed to produce structural frames and border profiles for cleanroom wall panels, purification equipment enclosures, and medical cabinets. These frames must be strong, dimensionally accurate, and have smooth, easy‑to‑clean surfaces.

Why choose roll formed frames for cleanrooms?

Extruded aluminum frames are expensive, while welded steel frames require grinding and may leave crevices. Roll formed stainless steel frames offer excellent strength, corrosion resistance, and smooth surfaces at a lower cost.

Production process:

Uncoiling – Motorized uncoiler (5‑8 tons), coil width up to 300mm.
Straightening – Leveling rolls.
Servo punching – Creates mounting holes, interlocking tabs, and corner notches.

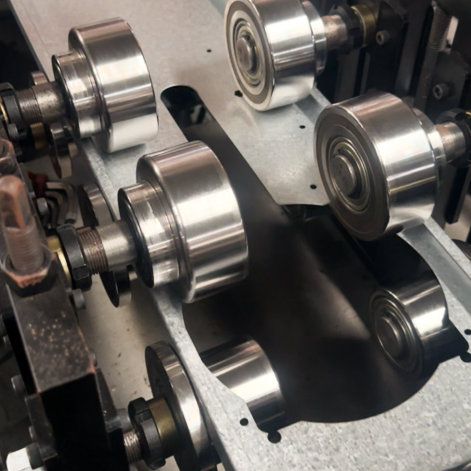

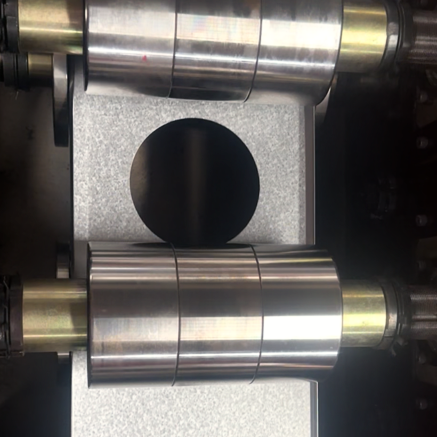

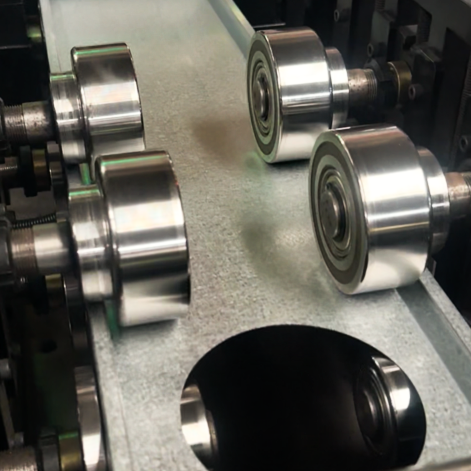

Roll forming – 12‑16 passes form the flat strip into C‑channel or L‑angle. Rollers Cr12MoV, HRC58‑62.
Edge finishing – Deburring to ensure smooth edges.

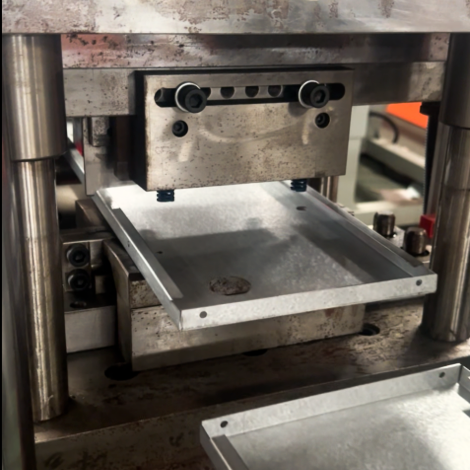

Cut‑off – Flying shear cuts to exact length (±0.5mm).

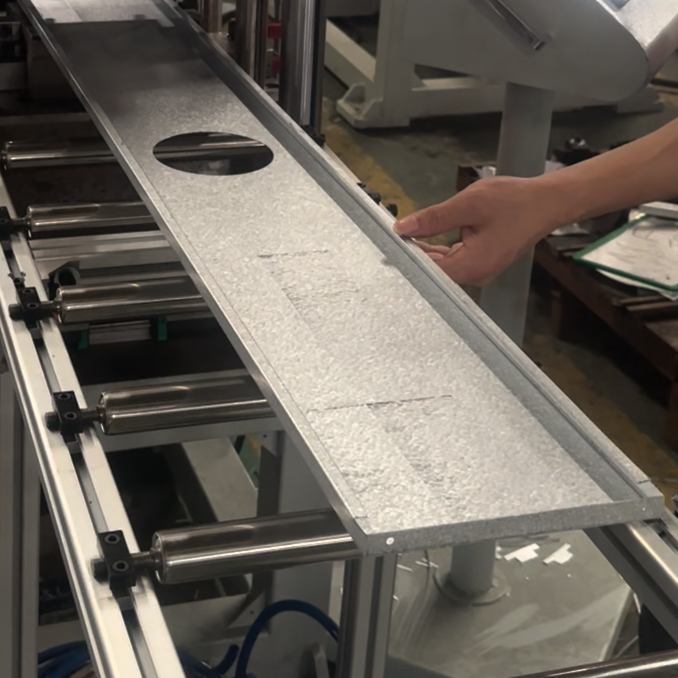

Stacking – Protective stacking.

Key features:

Corrosion resistant – Stainless steel option for cleanroom use.
Smooth edges – Deburred to prevent contamination.
Precision punching – Holes positioned for easy assembly.
Quick changeover – Adjustable tooling for different frame sizes.
High strength – Closed‑section frames available.

Material range:

Stainless steel (304, 316L)
Galvanized steel
Pre‑painted steel
Thickness: 0.8‑1.2mm

Typical frame specifications:

Parameter	Range
Frame width	25‑50 mm
Frame depth	25‑50 mm
Material thickness	0.8‑1.2 mm
Line speed	10‑15 m/min
Cut‑off tolerance	±0.5 mm

Applications:

Cleanroom panel frames
Purification equipment borders
Medical cabinet side frames
Hospital room partition frames
Laboratory enclosure frames

Optional features:

Corner notch punching for 45° assembly
Embossing for reinforcement
Automatic stacking

Included services:

Installation guidance
Operator training
Spare parts list
12‑month warranty, lifetime remote support

Lead time: 90 working days.

Contact SAVANY with your frame profile drawing (width, depth, thickness, hole pattern) for a customized quote.

➤
