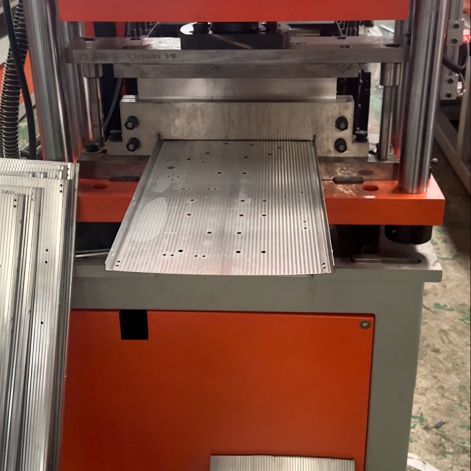

Laundry Drying Rack Sheet Panel Machine for Household & Commercial Use

This roll forming machine produces flat or embossed steel panels for clothes airers (drying racks) – including wall‑mounted, freestanding, and folding types. The line forms 0.4‑0.8mm galvanized or pre‑painted steel coil into panels with punched suspension holes and stiffening ribs. Integrated embossing adds decorative patterns or brand logos. Speeds up to 18 m/min, cut‑off tolerance ±0.5mm. Quick changeover between different panel sizes. Ideal for home appliance manufacturers and laundry rack producers requiring lightweight, rust‑resistant panels.

Brand: SAVANY
Machine Type: Roll forming machine / Press brake / Custom production line
Color: Custom / Customizable
Capabilities: Roll forming, punching, shearing
Roll Forming Material: SPCC/SPCD/SPCE/SGCC/CGCC/304/5052
Profile Dimensions: Custom
Customization Level：100% custom
Payment Terms: T/T
Lead Time: 90 working days
Place of Origin: Guangdong, China

Contact Us

Description

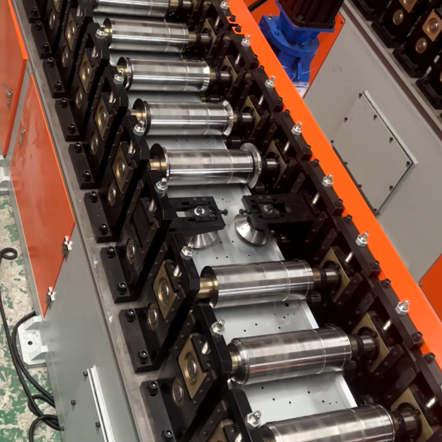

Clothes Airer Panel Cold Rolling Machinery

– Lightweight, Durable Panels for Drying Racks

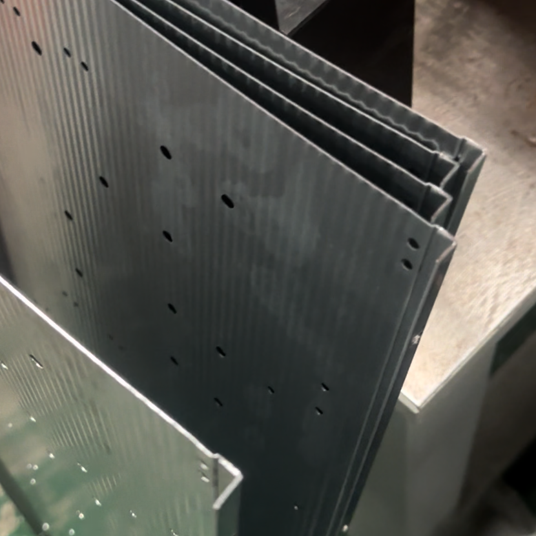

The clothes airer panel roll forming line is a specialized line for manufacturing steel panels used in clothes drying racks (airers). These panels form the main body or the folding arms of laundry racks, requiring lightness, corrosion resistance, and a clean appearance. The machine produces flat or ribbed panels with pre‑punched holes for hinges, suspension hooks, and fasteners.

Why roll forming for clothes airer panels?

Traditional panel fabrication uses stamping press – high tooling cost and slow for design changes. Roll forming offers continuous production with quick changeover, allowing manufacturers to produce various panel lengths and hole patterns economically.

Production process:

  1. Uncoiling – Motorized uncoiler (3‑5 tons), coil width up to 600mm.
  2. Straightening – Leveling rolls ensure flat material.
  3. Servo punching – Creates hinge holes, suspension slots, and lock points.
  4. Embossing (optional) – Adds decorative patterns, brand logos, or stiffening ribs.
  5. Edge hemming – Folds edges for safety and rigidity.
  6. Roll forming – Final flatness and straightening.
  7. Cut‑off – Flying shear cuts to exact panel length (±0.5mm).
  8. Stacking – Soft‑touch stacker to protect surface finish.

Key features:

Material range:

Typical panel specifications:

ParameterRange
Panel width100‑400 mm
Panel length300‑1500 mm
Hole patterncustom (hinge, lock, suspension)
Embossing depth0.2‑0.5 mm
Line speed12‑18 m/min
Cut‑off tolerance±0.5 mm

Applications:

Optional features:

Included services:

Lead time: 90 working days.

Contact SAVANY with your clothes airer panel drawing (size, hole pattern, embossing design) for a customized quotation.

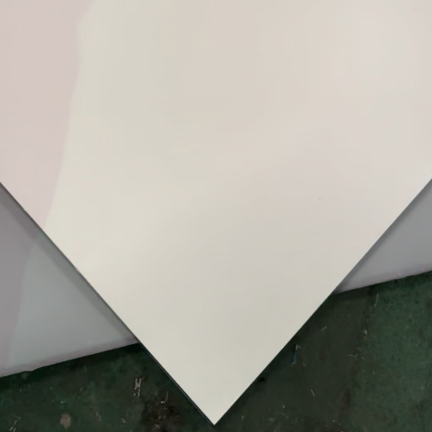

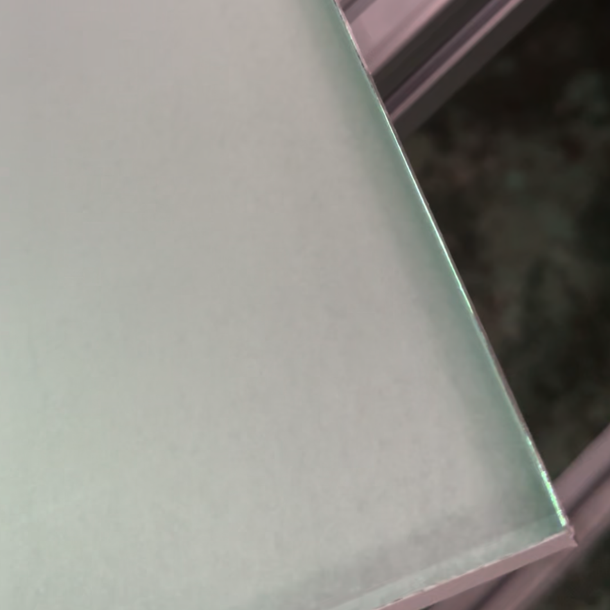

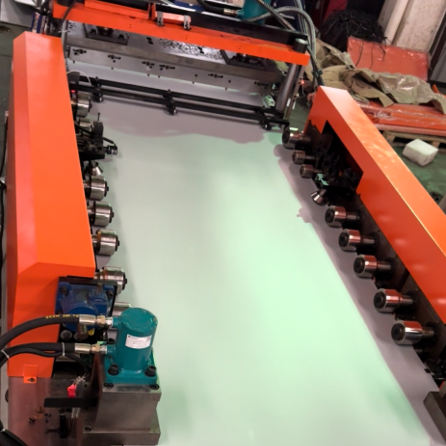

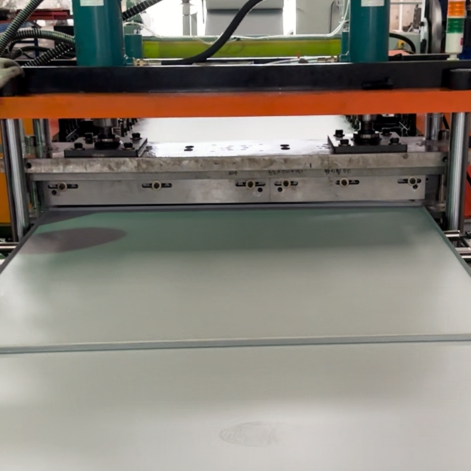

    Purification Equipment Panel Forming Machinery for Cleanrooms & Medical Facilities

    This roll forming line produces flat or corrugated steel panels for cleanroom walls, ceilings, and purification equipment enclosures. The machine forms 0.5‑1.5mm galvanized or stainless steel coil into panels with smooth, easy‑to‑clean surfaces. Integrated embossing adds stiffening ribs. Optional edge folding creates interlocking joints for modular cleanroom assembly. Cut‑off tolerance ±0.5mm, speeds up to 12 m/min. Quick changeover between panel widths (600‑1200mm). Ideal for cleanroom construction companies and medical equipment manufacturers.

    Brand: SAVANY
    Machine Type: Roll forming machine / Press brake / Custom production line
    Color: Custom / Customizable
    Capabilities: Roll forming, punching, shearing
    Roll Forming Material: SPCC/SPCD/SPCE/SGCC/CGCC/304/5052
    Profile Dimensions: Custom
    Customization Level：100% custom
    Payment Terms: T/T
    Lead Time: 90 working days
    Place of Origin: Guangdong, China

    Contact Us

    Description

    Cleanroom Panel Cold Roll Machining Machinery

    – Smooth, Hygienic Panels for Controlled Environments

    The cleanroom panel roll forming machine is designed to produce steel panels used in cleanrooms, pharmaceutical facilities, hospitals, and food processing plants. These panels require smooth, non‑porous surfaces that are easy to clean and resistant to corrosion.

    Why roll forming for cleanroom panels?

    Traditional panel fabrication involves cutting sheets and bending edges – slow and may create sharp burrs. Roll forming produces panels with consistently flat surfaces, rolled edges for safety, and optional interlocking features for quick assembly.

    Production process:

    Key features:

    Material range:

    Typical panel specifications:

    ParameterRange
    Panel width600‑1200 mm
    Panel length1200‑6000 mm (cut to length)
    Material thickness0.5‑1.5 mm
    Edge hem10‑20 mm
    Line speed8‑12 m/min
    Cut‑off tolerance±0.5 mm

    Applications:

    Optional features:

    Included services:

    Lead time: 90 working days.

    Contact SAVANY with your panel drawing (width, thickness, edge style, embossing pattern) for a customized quote.


      ➤
