Fire Hydrant Box Making Machine (3‑Side Forming) – Custom Roll Forming Machine Manufacturer

Fire Cabinet Enclosure Production Line for Wall‑Mounted & Recessed Fire Equipment

This roll forming machine produces three‑sided (U‑shaped) fire hydrant boxes – the back and two side walls in one continuous piece – for wall‑mounted or recessed installation. The line forms 0.8‑1.5mm galvanized steel coil into a U‑shaped enclosure with integrated flanges for door frames and mounting brackets. Integrated punching creates hinge holes, lock slots, and pipe entry knockouts. Speeds up to 8 m/min, cut‑off tolerance ±0.5mm. Optional door frame roll forming attachment. Ideal for fire equipment manufacturers requiring sturdy, seamless fire boxes.

Brand: SAVANY
Machine Type: Roll forming machine / Press brake / Custom production line
Color: Custom / Customizable
Capabilities: Roll forming, punching, shearing
Roll Forming Material: SPCC/SPCD/SPCE/SGCC/CGCC/304/5052
Profile Dimensions: Custom
Customization Level：100% custom
Payment Terms: T/T
Lead Time: 90 working days
Place of Origin: Guangdong, China

Contact Us

Description

Fire Hydrant Box Forming Systems (3‑Side Forming)

– Seamless Enclosures for Fire Safety Equipment

The fire hydrant box roll forming line is a dedicated line for manufacturing three‑sided (back + left + right walls) steel enclosures for fire hydrants, fire extinguishers, and hose reels. These boxes are typically recessed into walls or surface‑mounted in buildings, requiring a strong, rigid, and corrosion‑resistant structure. Roll forming the back and sides in one piece eliminates welding seams, increasing strength and reducing production time.

Why three‑side forming?

Traditional fire boxes are made from separate panels welded together – labor‑intensive and prone to distortion. One‑piece U‑shaped roll forming produces a seamless, warp‑free enclosure with consistent dimensions, simplifying assembly and improving appearance.

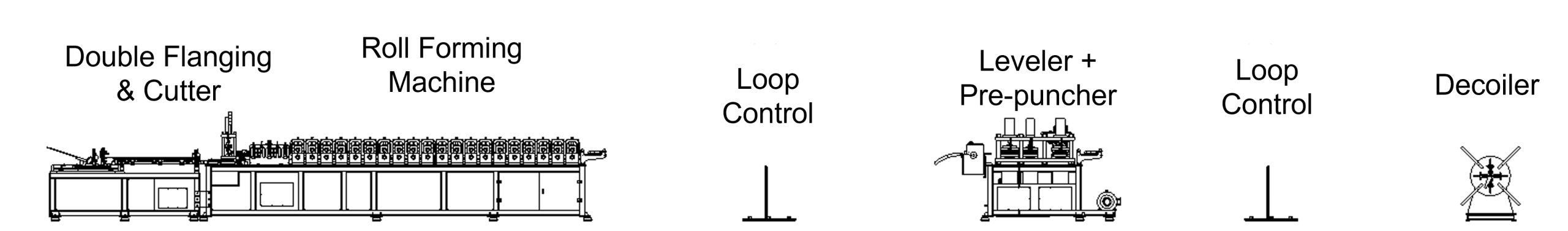

Production process:

Uncoiling – Motorized uncoiler (5‑10 tons), coil width up to 800mm.
Straightening – Leveling rolls.
Servo punching – Creates hinge holes, lock slots, pipe entry knockouts, and mounting bracket holes.
Edge flanging – Forms flanges on the front edges for door frame attachment.
Roll forming – 12‑14 passes gradually bend the flat sheet into a U‑channel (back + two sides).
Corner notching (optional) – Creates relief notches for bending side flanges.
Cut‑off – Flying shear cuts to box height (±0.5mm).
Stacking – Automatic stacker.

Key features:

Seamless construction – No welded corners, stronger and cleaner.
Pre‑punched hardware holes – Ready for hinge and lock installation.
Corrosion resistant – Galvanized steel standard, stainless optional.
Custom sizes – Box width, depth, height adjustable.
High output – Up to 8 m/min, producing hundreds of boxes per shift.

Material specifications:

Galvanized steel (SGCC, DX51D)
Stainless steel (304)
Thickness: 0.8‑1.5mm

Typical fire box sizes:

Parameter	Range
Box width (overall)	300‑600 mm
Box depth	100‑250 mm
Box height	500‑1200 mm
Flange width	15‑30 mm
Material thickness	0.8‑1.5 mm
Line speed	6‑10 m/min

Applications:

Wall‑mounted fire hydrant boxes
Recessed fire extinguisher cabinets
Fire hose reel enclosures
Emergency equipment cabinets
Fire alarm control panels (U‑shaped)

Optional features:

Door frame roll forming attachment
In‑line powder coating
Automatic stacking with counting

Included services:

Installation guidance
Operator training
Spare parts list
12‑month warranty, lifetime remote support

Lead time: 75-90 working days.

Contact SAVANY with your fire box drawing (width, depth, height, hole pattern) for a customized quotation.

➤
