Glass Retaining U Channel Machinery – Custom Roll Forming Machine Manufacturer

U‑Shaped Glass Clamp Profile Roll Forming Line for Curtain Walls & Windows

This roll forming machine produces U‑shaped channels designed to hold glass panels in curtain walls, storefronts, windows, and glass railings. The profile is formed from 0.6‑1.5mm stainless steel or galvanized steel, with inner dimensions to accommodate glass thicknesses of 6‑12mm. Inline punching creates weep holes and anchor slots. Speeds up to 15 m/min, cut‑off tolerance ±0.5mm. The channel can be produced with or without EPDM gasket groove. Ideal for glazing contractors, curtain wall fabricators, and window manufacturers.

Brand: SAVANY
Machine Type: Roll forming machine / Press brake / Custom production line
Color: Custom / Customizable
Capabilities: Roll forming, punching, shearing
Roll Forming Material: SPCC/SPCD/SPCE/SGCC/CGCC/304/5052
Profile Dimensions: Custom
Customization Level：100% custom
Payment Terms: T/T
Lead Time: 90 working days
Place of Origin: Guangdong, China

Contact Us

Description

Glass Retaining U‑Channel Cold Roll Machining Machinery

– Secure Glass Mounting Profiles

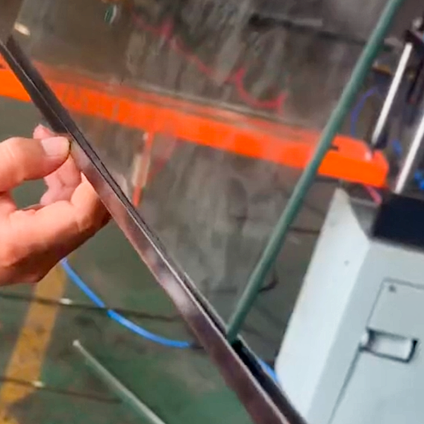

The glass retaining U‑channel roll forming machine is designed to produce U‑shaped profiles used to hold glass panels in curtain walls, storefront glazing, windows, and glass balustrades. The channel grips the edge of the glass, often with a rubber gasket, providing a secure and aesthetically pleasing installation.

Why roll forming for glass channels?

Extruded aluminum channels are expensive; roll formed steel channels are stronger and more cost‑effective. They can be produced in long lengths for floor‑to‑ceiling curtain walls and have consistent inner dimensions to ensure uniform glass fit.

Production process:

Uncoiling – Motorized uncoiler (5‑10 tons), coil width 100‑200mm.
Straightening – Leveling rolls.

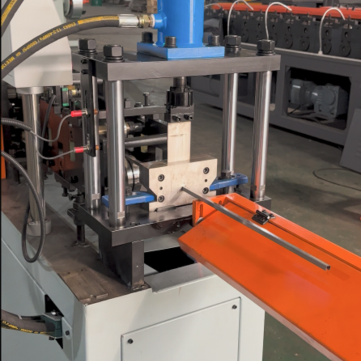

Punching – Creates weep holes (for water drainage) and anchor slots.

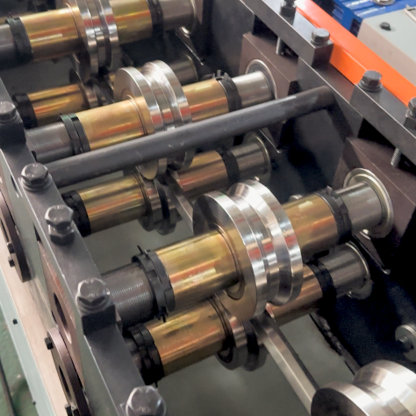

Roll forming – 10‑12 passes form the U‑channel. Rollers Cr12MoV, HRC58‑62.
Gasket groove forming (optional) – Rolls a small indent to hold a rubber gasket.
Cut‑off – Flying shear cuts to length (±0.5mm).
Stacking – Gentle stacker.

Key features:

Precision inner width – Accurate to ±0.2mm to fit glass thickness.
Weep holes – Pre‑punched to prevent water accumulation.
Stainless steel option – For exterior applications.
Gasket groove – Optional for rubber sealing.
High speed – Up to 15 m/min.

Material range:

Stainless steel (304, 316)
Galvanized steel (for interior)
Aluminum (lightweight option)
Thickness: 0.6‑1.5mm

Typical glass channel sizes:

Parameter	Range
Overall width	15‑30 mm
Inner width (glass pocket)	6‑12 mm
Leg height	15‑25 mm
Material thickness	0.6‑1.5 mm
Line speed	10‑15 m/min
Cut‑off tolerance	±0.5 mm

Applications:

Curtain wall glass retention
Storefront window glazing
Glass railings and balustrades
Sliding glass door frames
Skylight edge trim

Optional features:

EPDM gasket groove forming
In‑line powder coating
Automatic counting and bundling

Included services:

Installation guidance
Operator training
Spare parts list
12‑month warranty, lifetime remote support

Lead time: 75‑90 working days after deposit and drawing confirmation.

Contact SAVANY with your glass channel drawing (inner width, leg height, material) for a customized quotation.

➤
