In‑Line P‑Beam Pallet Rack Upright Roll Forming Machines – Custom Roll Forming Machine Manufacturer

Seam‑Welded P‑Shaped Column Rolling Machining Equipment for Heavy‑Duty Storage Racks

This roll forming line produces seam‑welded P‑shaped uprights for heavy‑duty pallet racks and industrial storage systems. The machine forms a P‑section from flat strip, then continuously welds the closed edge using high‑frequency induction welding (HFIW). Post‑weld stations remove burr, cool, and size the profile. Integrated servo punching creates teardrop or diamond holes. Material thickness 0.5‑2.5mm, line speed 8‑12 m/min. Ideal for rack manufacturers requiring extra‑strong, closed‑section uprights with superior torsional rigidity.

Brand: SAVANY
Machine Type: Roll forming machine / Press brake / Custom production line
Color: Custom / Customizable
Capabilities: Roll forming, punching, shearing
Roll Forming Material: SPCC/SPCD/SPCE/SGCC/CGCC/304/5052
Profile Dimensions: Custom
Customization Level：100% custom
Payment Terms: T/T
Lead Time: 90 working days
Place of Origin: Guangdong, China

Contact Us

Description

In‑Line Weld P‑Beam Pallet Rack Upright Cold Rolling Machines

– Ultra‑Strong Closed‑Section Columns for Heavy Loads

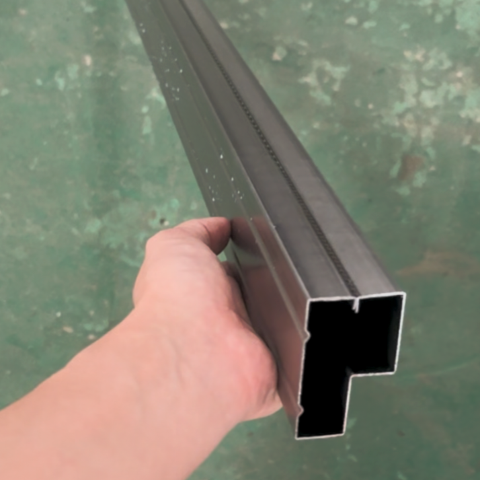

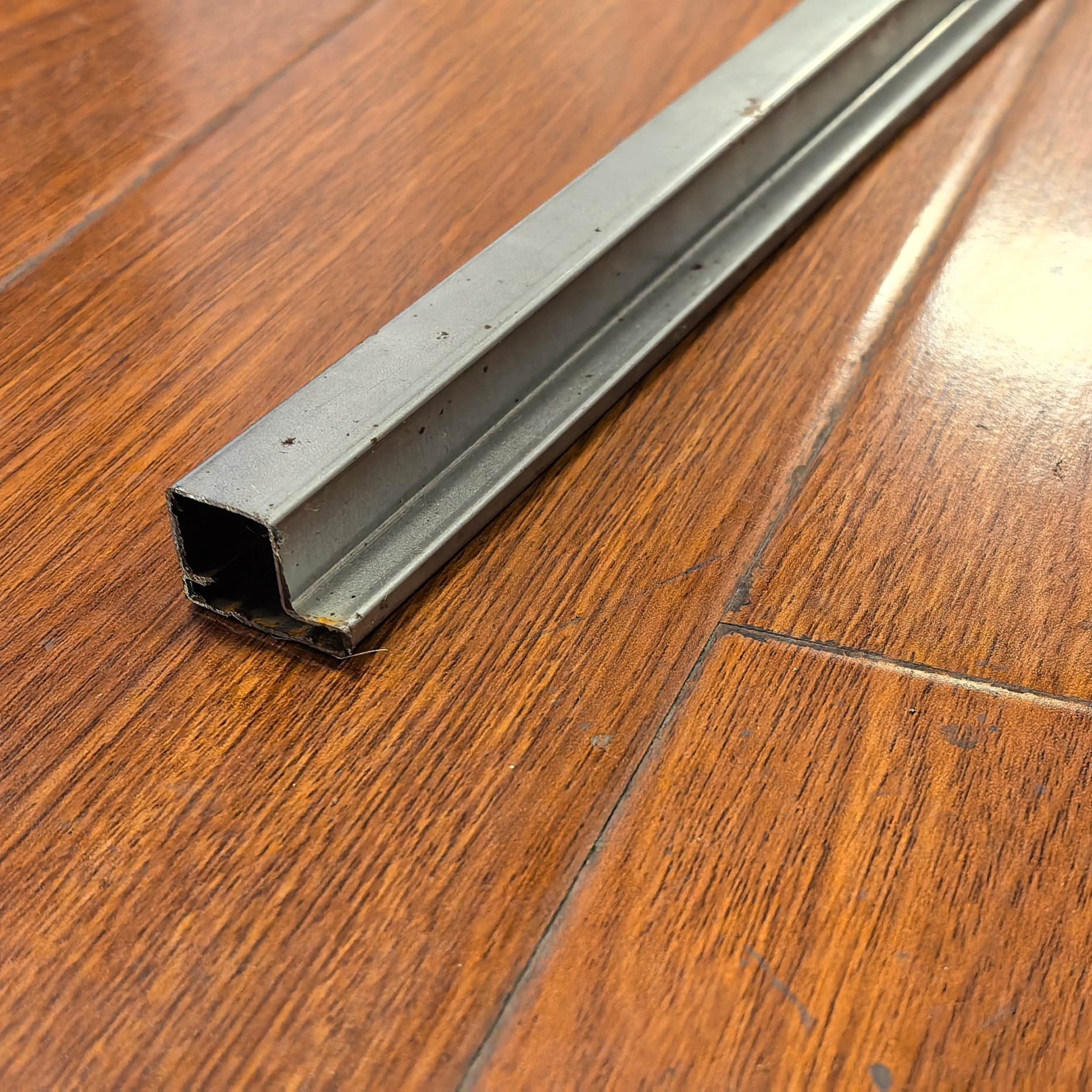

The in‑line welded P‑beam pallet rack upright roll forming machine is a specialized line for manufacturing seam‑welded P‑shaped columns used in heavy‑duty pallet racks, drive‑in racks, and seismic‑rated storage systems. Unlike open C‑channel or roll‑formed P‑beams, the welded P‑section has a fully closed edge, providing exceptional torsional rigidity and load capacity.

Why choose welded P‑beam uprights?

Welded P‑beams combine the strength of a closed tube with the convenient shape of a P‑section. The welded seam creates a continuous, uniform wall thickness, eliminating weak points. These uprights are ideal for high‑bay warehouses, seismic zones, and applications requiring maximum strength‑to‑weight ratio.

Production process:

Uncoiling – Hydraulic uncoiler (10‑20 tons), coil width up to 450mm.
Straightening – Leveling rolls ensure flat material.
Servo punching – Creates teardrop or diamond holes for beam connectors, plus base plate mounting holes. Programmable patterns.

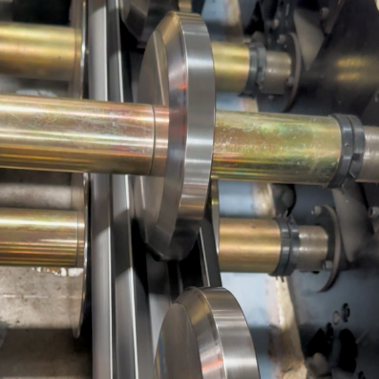

Pre‑forming – Initial bending of the flat strip into a pre‑closed P shape (open seam).
High‑frequency induction welding (HFIW) – A coil induces current to heat the seam edges; squeeze rolls forge them together without filler metal. This produces a continuous, strong weld.
Burr removal – A scraper removes internal and external weld flash.
Sizing & straightening – Final calibration ensures perfect shape and straightness.
Post‑weld annealing (optional) – Reduces residual stress for critical applications.

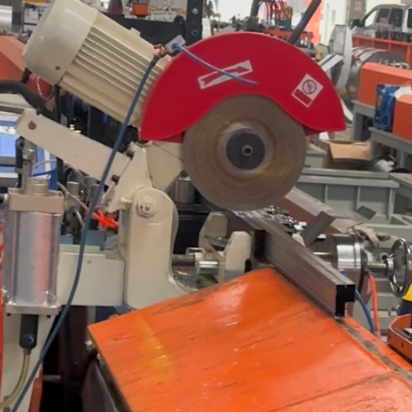

Cut‑off – Flying shear cuts to exact upright length (±0.5mm).
Stacking – Optional automatic stacker.

Key features:

Superior strength – Closed section increases load capacity by 30‑50% compared to open channels.
Continuous welding – HFIW produces a consistent, strong weld that is almost invisible after finishing.
High precision – Hole punching ±0.3mm, length tolerance ±0.5mm.
Heavy‑duty construction – Handles material up to 2.5mm thick.
Quick changeover – Adjustable tooling for different P‑beam sizes (e.g., 80×60mm, 100×70mm).

Material specifications:

Hot‑rolled pickled steel (HRPO)
Cold‑rolled steel
High‑strength low‑alloy (HSLA) steel
Thickness: 0.5‑2.5mm

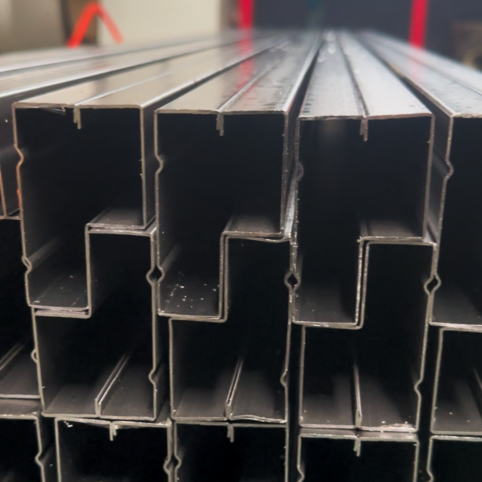

Typical P‑beam sizes:

Parameter	Range
Overall width	60‑120 mm
Overall depth	40‑80 mm
Material thickness	0.5‑2.5 mm
Line speed	8‑12 m/min
Punching accuracy	±0.3 mm
Cut‑off tolerance	±0.5 mm
Main power	50‑80 kW (including welder)

Applications:

Heavy‑duty pallet rack uprights
Drive‑in rack columns
Seismic‑rated rack systems
High‑bay warehouse columns
Cantilever rack posts

Optional features:

Post‑weld annealing for stress relief
Ultrasonic weld inspection system
Automatic stacking and counting
Coil car for heavy coils
Remote monitoring module

Included services:

Installation guidance (remote or on‑site optional)
Operator training (including welding parameters)
Spare parts list and wear parts drawings
12‑month warranty (mechanical), 6 months on weld tooling
Lifetime remote support

Lead time: 90-120 working days (due to welder integration).

Contact SAVANY with your welded P‑beam drawing (width, depth, thickness, hole pattern) for a customized quotation.

➤
