Filing Cabinet Shelf Deck Roll Forming Equipment

This roll forming machine produces steel shelf panels (decks) for filing cabinets, office storage units, and metal shelving. The line forms flat or ribbed panels from 0.5‑1.2mm steel coil with integrated punching for shelf support hooks and stiffening ribs. Embossing units add reinforcement patterns to prevent bending under load. The machine operates at speeds up to 15 m/min with cut‑off tolerance ±0.5mm. Quick changeover between different panel widths (300‑600mm) and lengths is achieved with adjustable tooling. Ideal for office furniture manufacturers who want to produce their own shelf components in‑house, reducing outsourcing costs.

Brand: SAVANY
Machine Type: Roll forming machine / Press brake / Custom production line
Color: Custom / Customizable
Capabilities: Roll forming, punching, shearing
Roll Forming Material: SPCC/SPCD/SPCE/SGCC/CGCC/304/5052
Profile Dimensions: Custom
Customization Level：100% custom
Payment Terms: T/T
Lead Time: 90 working days
Place of Origin: Guangdong, China

Contact Us

Description

Office Cabinet Shelf Panel Roll Forming Machine

– Strong, Flat, Ready‑to‑Use Shelves

The office cabinet shelf panel roll forming machine is designed to produce steel shelf decks (the horizontal panels inside filing cabinets and storage cabinets). These shelves must be flat, strong, and have accurately placed hooks or holes for shelf support clips. Our roll forming line delivers all these requirements in one continuous operation.

Why roll forming for shelf panels?

Traditional shelf manufacturing involves cutting sheets, punching holes, and bending edges on a press brake – multiple steps with high labor and inconsistent results. Roll forming produces shelves with consistent flatness, precise hole locations, and optional stiffening ribs – all in one pass.

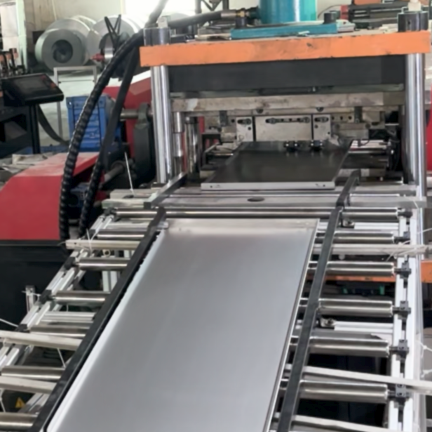

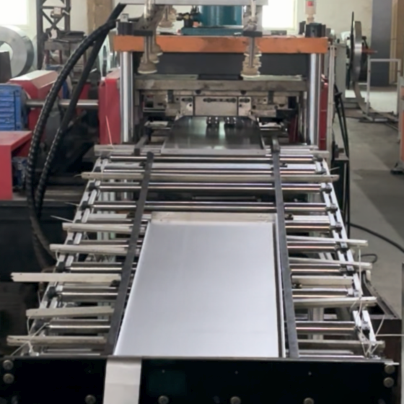

Complete production line includes:

Uncoiler – Manual or motorized, capacity up to 5 tons.
Servo feeder & straightener – Ensures flat material.
Punching unit – Creates mounting hooks, support holes, and wire management slots.
Embossing station – Adds reinforcement ribs or patterns to increase panel strength without adding thickness.

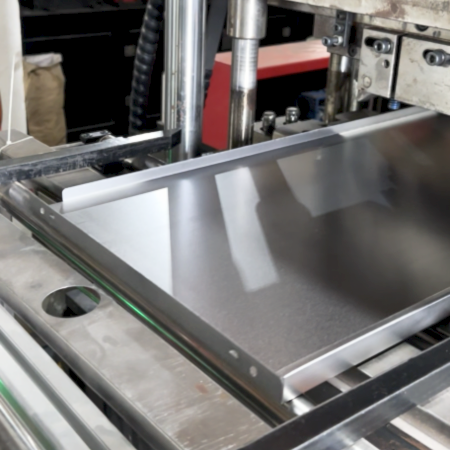

Roll forming station – Forms the panel edges (hemmed or folded) for safety and rigidity.
Cut‑off press – Flying shear cuts panels to exact length.
Stacking table – Collects finished shelves for easy packing.

Key advantages:

Flatness guaranteed – The straightener and leveling system ensure shelves are perfectly flat, preventing sagging under weight.
Stiffening ribs – Optional embossing rolls create longitudinal ribs that increase load capacity by up to 40% without increasing material thickness.
Accurate hole patterns – Servo‑controlled punching ensures shelf support hooks align perfectly with cabinet uprights.
Quick changeover – Switch between different shelf widths (300‑600mm) and lengths in under 30 minutes.
Surface protection – Rubber‑coated rollers prevent scratching on pre‑painted or laminated steel.

Material range:

Cold‑rolled steel (SPCC, SPCD)
Galvanized steel
Pre‑painted steel
Stainless steel
Thickness: 0.5‑1.2mm

Typical shelf panel features:

Hemmed front edge for safety
Reinforcing ribs (longitudinal or cross)
Punched slots for shelf clips
Wire management cutouts (for computer cabinets)

Typical shelf panel features:

Parameter	Range
Panel width	300‑600 mm
Panel length	400‑1200 mm (cut to length)
Material thickness	0.5‑1.2 mm
Line speed	10‑15 m/min
Punching stations	2‑4 programmable
Embossing	optional
Cut‑off tolerance	±0.5 mm
Power	~20 kW

Economic benefits:

Labor reduction – One operator instead of 2‑3.
Material savings – Continuous process reduces scrap to under 2%.
Lower outsourcing costs – Produce shelves in‑house instead of buying from external suppliers.
Faster response – Make shelves when you need them, without waiting for orders.

Optional equipment:

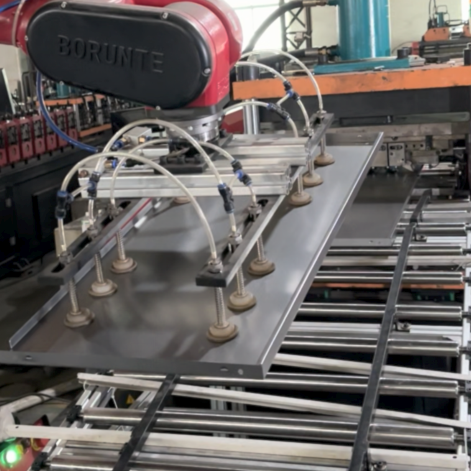

Automatic stacking with counting
Embossing roll sets for different rib patterns
Coil car
Remote support module

Included with machine:

PLC control with touch screen (recipes for different shelf sizes)
Operation manual and spare parts list
Factory acceptance test video
12‑month warranty, lifetime remote support

Applications:

Filing cabinet shelves
Lateral file shelves
Storage cabinet decks
Metal locker shelves
Office shelving units

Contact SAVANY with your shelf panel drawing and production requirements for a customized solution.

➤
