Perforated U Profile Forming Machine – Custom Roll Forming Machine Manufacturer

Punched U‑Channel Roll Formers for Cable Management & Drainage

This roll forming machine produces U‑channels with punched perforations along the web and flanges. Ideal for cable trays, drainage channels, shelving supports, and ventilation ducts. The line integrates servo punching for round, slotted, or custom holes, followed by roll forming of the U profile. Material thickness 0.4‑2.0mm, coil width up to 400mm. Speeds up to 12 m/min. Cut‑off tolerance ±0.5mm. Perforation patterns are programmable via HMI. Quick changeover between different U‑channel widths and hole patterns. Ideal for electrical, construction, and industrial applications.

Brand: SAVANY
Machine Type: Roll forming machine / Press brake / Custom production line
Color: Custom / Customizable
Capabilities: Roll forming, punching, shearing
Roll Forming Material: SPCC/SPCD/SPCE/SGCC/CGCC/304/5052
Profile Dimensions: Custom
Customization Level：100% custom
Payment Terms: T/T
Lead Time: 90 working days
Place of Origin: Guangdong, China

Contact Us

Description

Perforated U‑Channel Cold Rolling Machinery

– Custom Punch Patterns for Versatile Applications

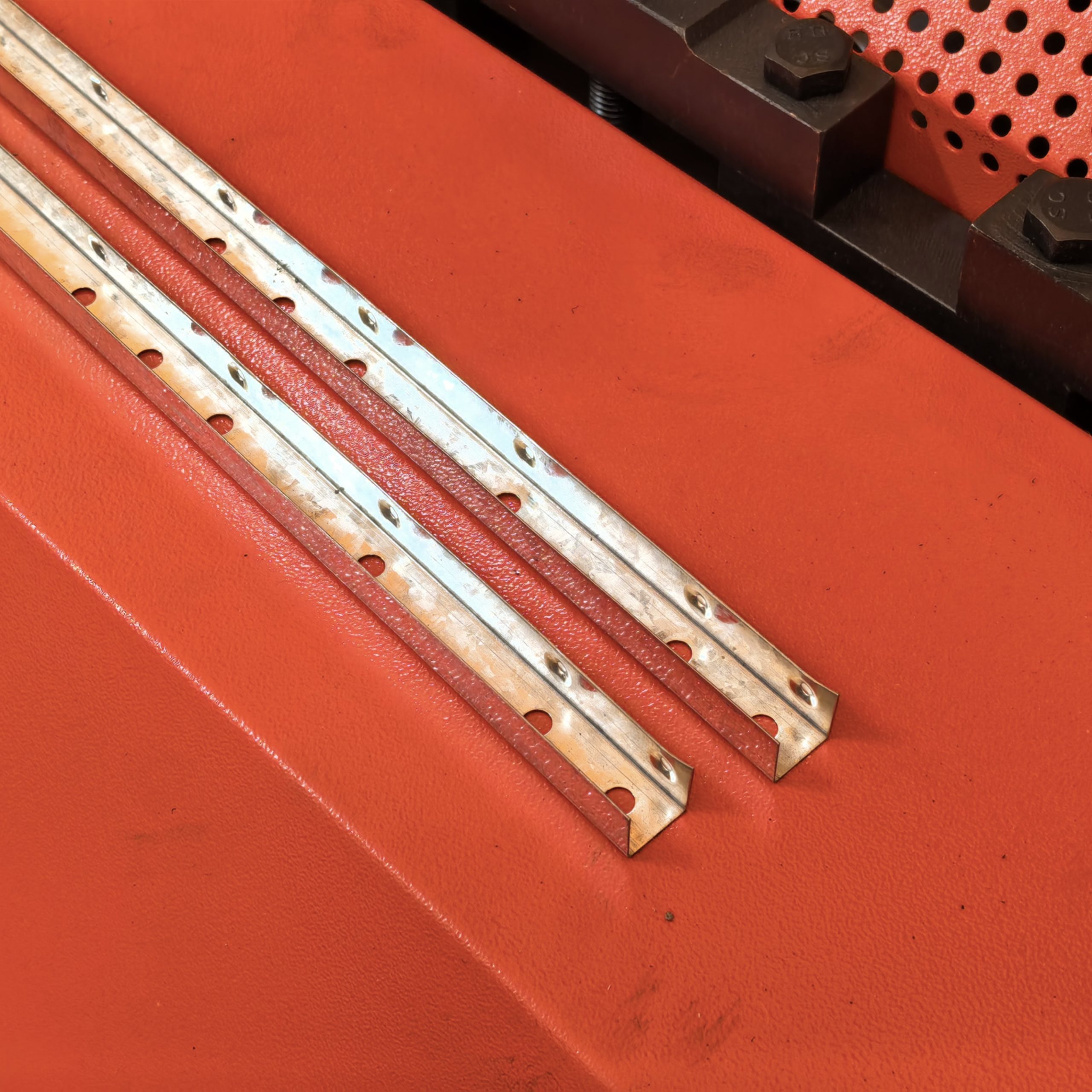

The perforated U‑channel roll forming line is a specialized line for producing U‑shaped channels with pre‑punched holes or slots. These perforated channels are used in cable management systems (cable trays), drainage channels, shelving supports, and ventilation grilles.

Why perforated U‑channels?

Pre‑punched holes eliminate secondary drilling, reduce labor, and ensure consistent hole placement. Holes can be round, slotted, or custom shapes for specific applications (e.g., cable ties, drainage slots, or mounting screws).

Machine components:

Uncoiling – Motorized uncoiler (5‑10 tons), coil width 200‑400mm.
Straightening – Leveling rolls.

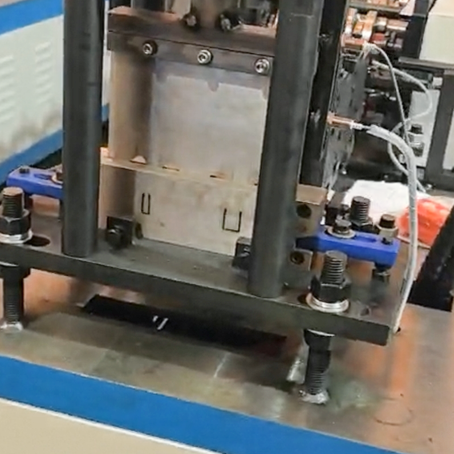

Servo punching – Programmable punch press creates holes in the web and/or flanges. Punching speed up to 200 strokes/min.
Roll forming – 10‑12 passes form the flat strip into a U‑channel. Rollers Cr12MoV, HRC58‑62.
Cut‑off – Flying shear cuts to length (±0.5mm).
Stacking – Optional automatic stacker.

Key features:

Custom hole patterns – Any hole size, shape, or spacing programmable.
High speed punching – Up to 200 holes per minute.
Versatile profiles – U‑channel width 30‑150mm, leg height 20‑60mm.
Quick changeover – Recipes stored for different hole patterns and channel sizes.
Material flexibility – Steel, stainless steel, or aluminum.

Material range:

Galvanized steel
Stainless steel (304)
Aluminum
Thickness: 0.4‑2.0mm

Typical U‑channel specifications:

Parameter	Range
Channel width	30‑150 mm
Leg height	20‑60 mm
Material thickness	0.4‑2.0 mm
Hole diameter	3‑20 mm
Line speed	8‑12 m/min
Cut‑off tolerance	±0.5 mm

Applications:

Perforated cable trays
Drainage channels with slots
Shelving support rails
Ventilation duct profiles
Machine guard mounting channels

Optional features:

In‑line deburring for punched holes
Automatic stacking with counting
Remote monitoring module

Included services:

Installation guidance
Operator training
Spare parts list
12‑month warranty, lifetime remote support

Lead time: 75‑90 working days after deposit and drawing confirmation.

Contact SAVANY with your U‑channel drawing (width, leg height, hole pattern) for a customized quotation.

➤
