Refrigerator Frame Trim Roll Forming Equipment – Custom Roll Forming Machine Manufacturer

Side Rail & Border Profile Production Lines for Refrigerator Cabinets

This roll forming machine produces decorative and structural trim profiles for refrigerator cabinets, freezer doors, and commercial refrigeration units. The line forms stainless steel or pre‑painted steel coils 0.4‑0.8mm thick into C‑channel, L‑angle, or custom trim shapes. Integrated embossing adds decorative patterns or brand logos. Flying cut‑off with ±0.3mm tolerance ensures clean edges for assembly. Speeds up to 20 m/min. Quick changeover between different trim widths and profiles. Ideal for appliance manufacturers requiring high‑volume, consistent trim components.

Brand: SAVANY
Machine Type: Roll forming machine / Press brake / Custom production line
Color: Custom / Customizable
Capabilities: Roll forming, punching, shearing
Roll Forming Material: SPCC/SPCD/SPCE/SGCC/CGCC/304/5052
Profile Dimensions: Custom
Customization Level：100% custom
Payment Terms: T/T
Lead Time: 90 working days
Place of Origin: Guangdong, China

Contact Us

Description

Refrigerator Frame Trim Rolled Machines

– Precision Trim for Modern Appliances

The refrigerator frame trim roll forming machine is a specialized line for manufacturing metal trim profiles used on refrigerator doors, side panels, and cabinet edges. These trims provide both structural reinforcement and aesthetic appeal, often with decorative embossing or brushed finishes.

Why roll forming for appliance trim?

Traditional fabrication uses press braking and secondary polishing – time‑consuming and prone to surface damage. Roll forming produces continuous lengths of trim with embossed patterns, pre‑punched mounting holes, and smooth edges – all in one pass.

Production process:

Uncoiling – Motorized uncoiler (3‑5 tons), coil width up to 200mm.
Straightening – Leveling rolls.
Embossing (optional) – Adds decorative patterns, wood grain, or brand logos.
Servo punching – Creates mounting holes, clip slots, and corner notches.

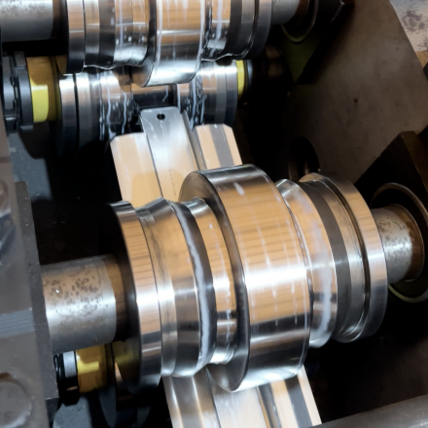

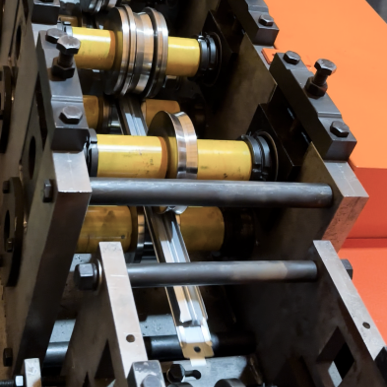

Roll forming – 8‑12 passes form the flat strip into C‑channel, L‑angle, or custom shapes. Rollers Cr12MoV, HRC58‑62.

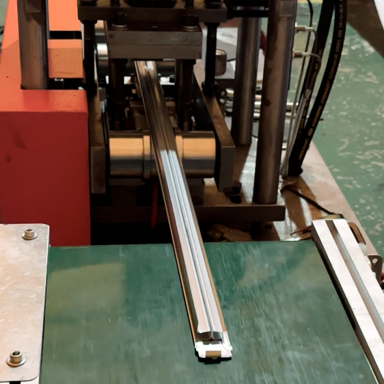

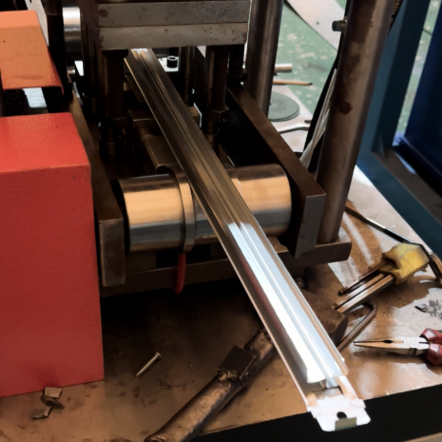

Cut‑off – Flying shear cuts to exact length (±0.3mm).
Stacking – Gentle stacker to avoid surface scratches.

Key features:

High surface quality – Urethane‑coated rollers prevent scratching.
Decorative embossing – Custom patterns available.
Precision cutting – ±0.3mm tolerance for tight assembly.
High speed – Up to 20 m/min.
Material versatility – Stainless steel, pre‑painted steel, aluminum.

Material range:

Stainless steel (304, 430, brushed finish)
Pre‑painted steel
Aluminum
Thickness: 0.4‑0.8mm

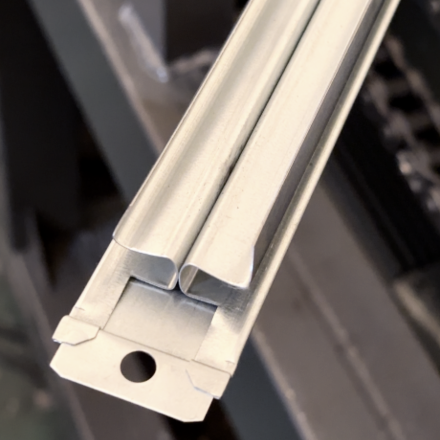

Typical trim profiles:

Parameter	Range
Trim width	10‑40 mm
Trim height	5‑20 mm
Material thickness	0.4‑0.8 mm
Line speed	15‑20 m/min
Cut‑off tolerance	±0.3 mm

Load capacity:

Flat shelf (no ribs): up to 50kg
Ribbed shelf: up to 100kg
Heavy‑duty ribbed (1.2mm): up to 150kg

Applications:

Refrigerator door frames
Freezer cabinet trim
Commercial refrigeration units
Wine cooler borders
Display case trim

Optional features:

In‑line polishing station
Protective film applicator
Automatic counting and bundling

Included services:

Installation guidance
Operator training
Spare parts list
12‑month warranty, lifetime remote support

Lead time: 75-90 working days.

Contact SAVANY with your refrigerator trim drawing (profile shape, width, thickness, embossing pattern) for a customized quote.

➤
