Shelf Panel Stiffener Roll Machining Equipment – Custom Roll Forming Machine Manufacturer

Reinforcement Profile Rolling Forming Machines for Warehouse Shelving

This roll forming machine produces stiffener profiles (reinforcement ribs) that are welded or clipped to the underside of shelf panels to increase load capacity. The line forms hat‑channel, C‑channel, or omega profiles from 0.6‑1.5mm galvanized steel coil. Integrated punching creates mounting holes for clips or spot welding alignment. Speeds up to 20 m/min, cut‑off tolerance ±0.5mm. Quick changeover between different stiffener heights (20‑50mm). Essential for manufacturers needing to strengthen shelf decks for heavy‑duty storage applications.

Brand: SAVANY
Machine Type: Roll forming machine / Press brake / Custom production line
Color: Custom / Customizable
Capabilities: Roll forming, punching, shearing
Roll Forming Material: SPCC/SPCD/SPCE/SGCC/CGCC/304/5052
Profile Dimensions: Custom
Customization Level：100% custom
Payment Terms: T/T
Lead Time: 90 working days
Place of Origin: Guangdong, China

Contact Us

Description

Shelf Panel Stiffener Roll Forming Equipment

– Increase Shelf Load Capacity

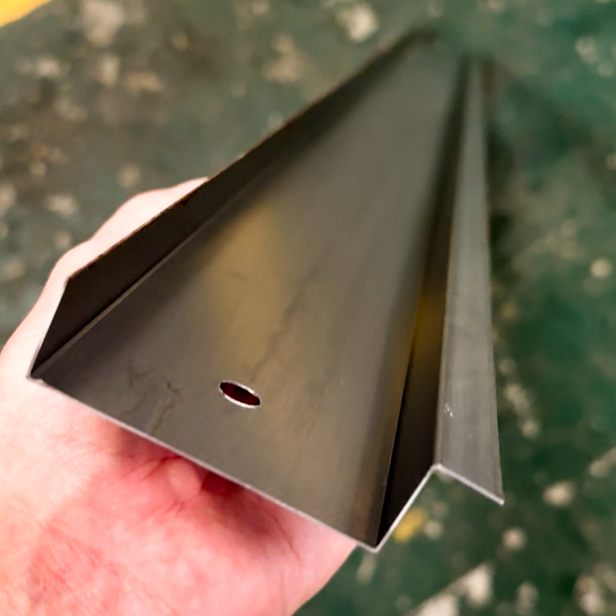

The shelf panel stiffener roll forming machine is a dedicated line for producing reinforcing profiles that are attached to the underside of shelf panels to prevent sagging under heavy loads. These stiffeners (also called hat channels, C‑channels, or omega profiles) significantly increase the load‑bearing capacity of steel shelves without increasing material thickness.

Why roll forming for stiffeners?

Stiffeners are long, narrow profiles that require precise dimensions and consistent straightness. Roll forming is ideal because it produces continuous lengths with uniform cross‑section, minimal bowing, and integrated punching for attachment points – all in one pass.

Production process:

Uncoiling – Motorized uncoiler (3‑8 tons), coil width 100‑200mm.
Straightening – Leveling rolls.
Servo punching – Creates mounting holes for clips, spot welding alignment dimples, or notches for cross‑stiffeners.

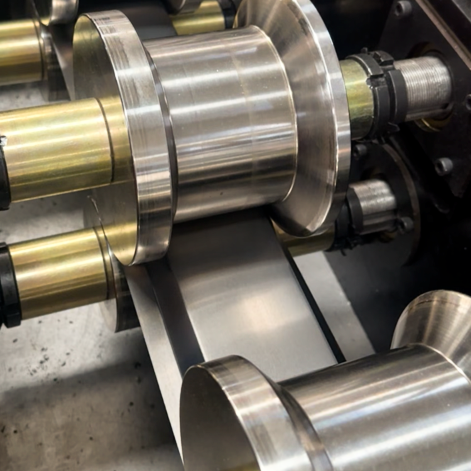

Roll forming – 12‑16 passes form the flat strip into hat‑channel, C‑channel, or omega profile. Rollers Cr12MoV, HRC58‑62.

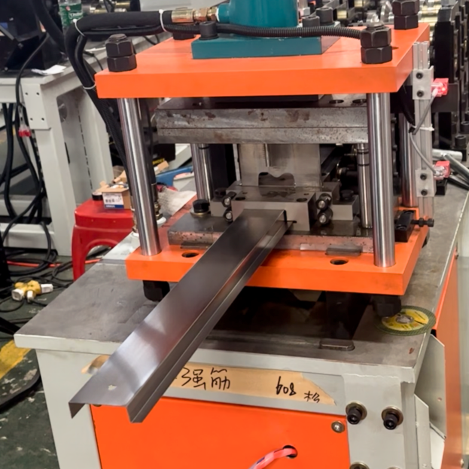

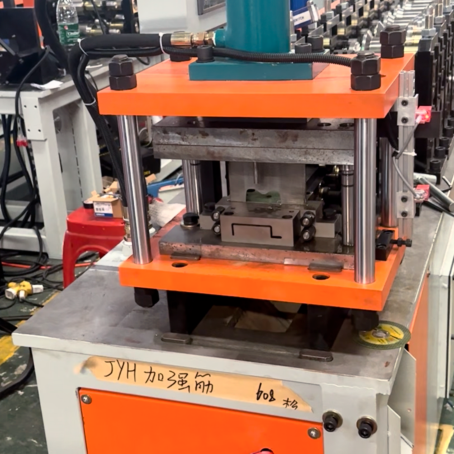

Cut‑off – Flying shear cuts to exact length (±0.5mm).
Stacking – Optional automatic stacker.

Key features:

High precision – Consistent profile dimensions ensure stiffeners fit perfectly under shelf panels.
Flexible profiles – Quick changeover between different stiffener heights (20‑50mm) and shapes (hat, C, omega).
Integrated punching – Pre‑punched holes reduce secondary drilling.
High speed – Up to 20 m/min, producing hundreds of stiffeners per shift.
Durable tooling – Hardened rollers for long life.

Material range:

Galvanized steel
Cold‑rolled steel
Thickness: 0.6‑1.5mm

Typical stiffener profiles:

Parameter	Range
Stiffener height	20‑50 mm
Stiffener width (top flange)	20‑40 mm
Material thickness	0.6‑1.5 mm
Line speed	15‑20 m/min
Cut‑off tolerance	±0.5 mm

How stiffeners work:

Welded: Stiffeners are spot‑welded to the shelf panel underside at regular intervals.
Clipped: Stiffeners snap into pre‑punched slots on the shelf panel.
Riveted: Used in riveted shelving systems.

Applications:

Reinforcing warehouse shelf decks
Pallet rack shelf stiffeners
Riveted shelving reinforcement
Industrial shelving for heavy loads
Mezzanine floor deck supports

Optional features:

Embossing for additional stiffness
Notching for cross‑stiffeners
Automatic counting and bundling

Included services:

Installation guidance
Operator training
Spare parts list
12‑month warranty, lifetime remote support

Lead time: 75-90 working days.

Contact SAVANY with your stiffener profile drawing (height, width, thickness, hole pattern) for a customized quote.

➤
