Filing Cabinet Door Panel Production Line

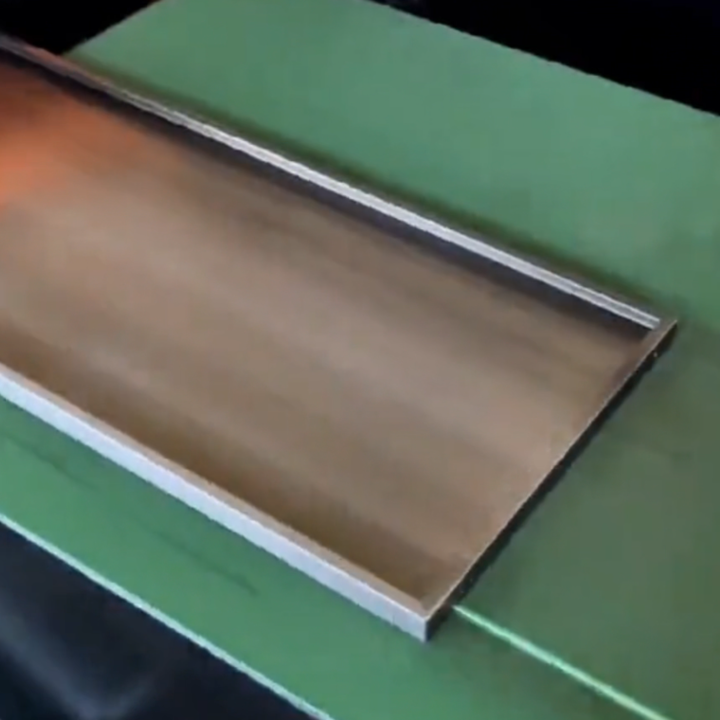

This roll forming machine produces high‑precision steel doors for filing cabinets, office storage units, and metal lockers. The line forms flat or embossed door panels from pre‑painted or galvanized steel coils with clean edges and consistent flatness. Integrated punching creates handle openings, lock holes, and hinge mounting points. The machine handles material thickness 0.5‑1.2mm and operates at speeds up to 15 m/min. Cut‑off tolerance ±0.5mm ensures doors fit perfectly into cabinet frames. Ideal for office furniture manufacturers seeking automated door panel production.

Brand: SAVANY
Machine Type: Roll forming machine / Press brake / Custom production line
Color: Custom / Customizable
Capabilities: Roll forming, punching, shearing
Roll Forming Material: SPCC/SPCD/SPCE/SGCC/CGCC/304/5052
Profile Dimensions: Custom
Customization Level：100% custom
Payment Terms: T/T
Lead Time: 90 working days
Place of Origin: Guangdong, China

Contact Us

Description

File Cabinet Door Roll Forming Machine

– Automated Production for Office Storage

The filing cabinet door roll forming machine is a specialized production line designed for manufacturing steel doors used in filing cabinets, office lockers, and metal storage units. Unlike press brake bending which requires multiple setups, this continuous roll forming line produces finished door panels in one pass – from coil to cut‑to‑length door blank, with pre‑punched holes for handles, locks, and hinges.

Why choose a roll forming line for cabinet doors?

Traditional door fabrication involves shearing sheets, punching holes on a turret press, and bending edges on a press brake – three separate operations with high labor cost and inconsistent quality. Our roll forming line integrates all steps into one automated process, reducing labor by up to 70% and ensuring every door panel is identical.

Key components of the line:

Uncoiler (manual or motorized) – holds coils up to 5 tons, width up to 800mm.
Servo feeder & straightener – ensures flat, stress‑free material for accurate forming.
Punching unit – hydraulic or servo‑driven; creates handle slots, lock holes, and hinge mounting points. Programmable for different hole patterns.
Roll forming station – 12‑16 passes progressively form the door panel shape – flat, ribbed, or embossed. Quick‑change tooling for different widths or patterns.

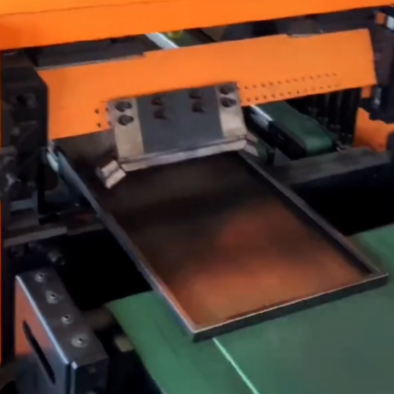

Cut‑off press – flying shear cuts the panel to exact length (±0.5mm).
Optional stacking table – collects finished panels for easy handling.

Material versatility:

The machine processes cold‑rolled steel, galvanized steel, pre‑painted steel, and stainless steel coils with thickness from 0.5mm to 1.2mm. Pre‑coated materials can be formed without surface scratching using urethane‑coated rollers.

Typical door panel profiles:

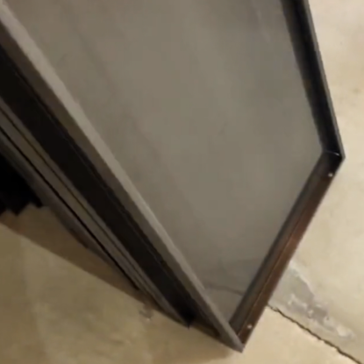

Flat panels with punched handle openings
Ribbed panels for reinforcement
Embossed decorative panels
Double‑wall door panels (with internal insulation)

Technical specifications (customizable):

Parameter	Range
Door panel width	300‑600 mm
Door panel height	unlimited (cut to length)
Material thickness	0.5‑1.2 mm
Line speed	8‑15 m/min
Punching stations	2‑4 programmable
Cut‑off tolerance	±0.5 mm
Power	~22 kW

Advantages over traditional methods:

Consistent quality – No operator‑dependent variations.
Lower cost – One operator instead of three.
Faster changeover – Switch between different door sizes in under 30 minutes.
Less waste – Continuous process reduces scrap to under 2%.

Optional upgrades:

Automatic stacking and counting system
Embossing roll unit for decorative patterns
Coil car for easy loading
Remote monitoring and diagnostics

Applications:

Vertical filing cabinet doors
Lateral file cabinet doors
Office storage locker doors
Tool cabinet doors
School locker doors

Included with the machine:

Lifetime remote technical support
Operation manual and spare parts list
PLC control (Xinje or Siemens) with touch screen
Factory acceptance test (FAT) video

Warranty: 12 months on mechanical parts, 6 months on wear parts (punches, blades). Spare parts available within 7 working days.

Lead time: 60‑90 working days after deposit and drawing approval.

Contact SAVANY with your door panel drawing to receive a customized quotation and layout proposal.

➤
