Warehouse Shelf Panel Roll Forming Machinery – Custom Roll Forming Machine Manufacturer

Heavy‑Duty Shelf Deck Roll Former for Pallet Racks & Industrial Shelving

This roll forming line produces heavy‑duty shelf panels for warehouse pallet racks, industrial shelving, and storage systems. The machine forms flat or ribbed panels from 0.8‑1.5mm galvanized steel coil. Integrated punching creates support hook holes, stiffening ribs, and optional ventilation slots. Speeds up to 12 m/min, cut‑off tolerance ±0.5mm. Quick changeover between panel widths (600‑1200mm). Ideal for rack manufacturers needing strong, durable shelf decks for high‑load applications.

Brand: SAVANY
Machine Type: Roll forming machine / Press brake / Custom production line
Color: Custom / Customizable
Capabilities: Roll forming, punching, shearing
Roll Forming Material: SPCC/SPCD/SPCE/SGCC/CGCC/304/5052
Profile Dimensions: Custom
Customization Level：100% custom
Payment Terms: T/T
Lead Time: 90 working days
Place of Origin: Guangdong, China

Contact Us

Description

Warehouse Shelf Panel Roll Machining Equipment

– Durable Decks for High‑Load Storage

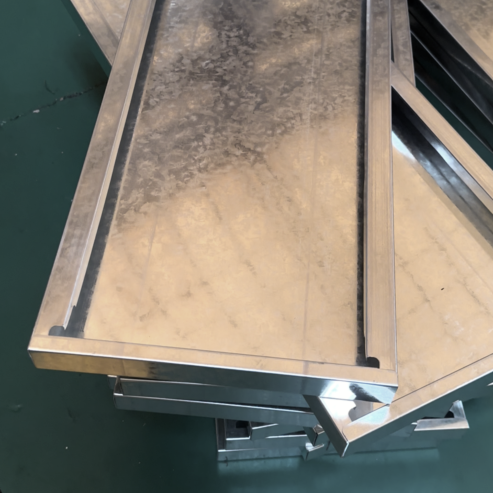

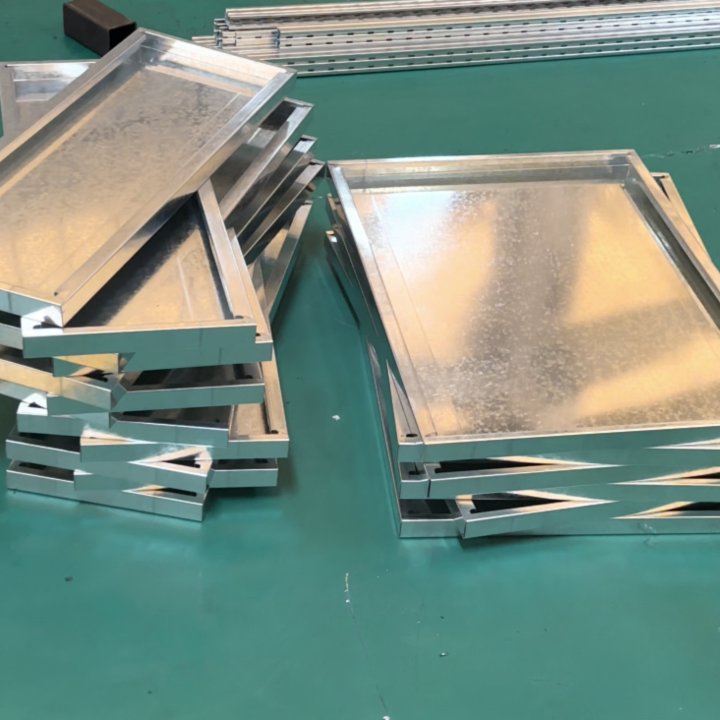

The warehouse shelf panel roll forming machine is designed to produce heavy‑duty shelf decks (panels) for pallet racks, industrial shelving, and warehouse storage systems. These shelves must support heavy loads (often 500‑2000 kg per shelf) without sagging, and must have precisely placed hooks for secure attachment to rack beams.

Why choose our shelf panel line?

Traditional shelf fabrication involves multiple steps: cutting sheets, punching holes, bending edges, and welding stiffeners – labor‑intensive and inconsistent. Our roll forming line produces complete shelf panels in one continuous process, with integrated punching, stiffening ribs, and hemmed edges.

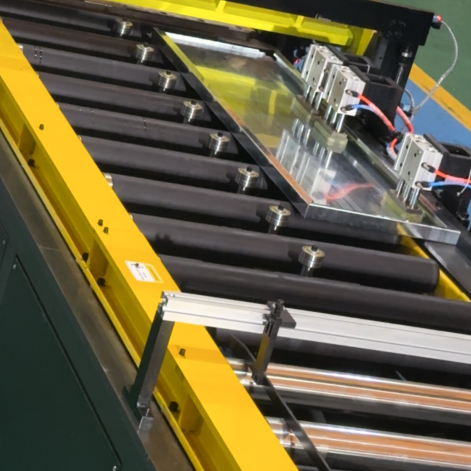

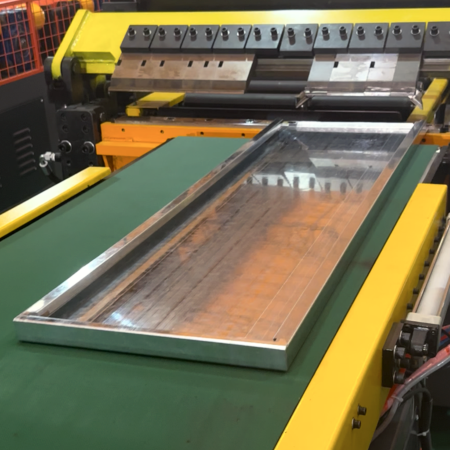

Production process:

Uncoiling – Heavy‑duty uncoiler (10‑15 tons), coil width up to 1250mm.
Straightening – Leveling rolls ensure flat material.
Servo punching – Creates support hook holes along the panel edges, plus optional ventilation slots and stiffening rib embossing.
Edge forming – Hemmed front and back edges (folded double layer) for safety and rigidity.
Roll forming – Final flatness and straightening.
Cut‑off – Flying shear cuts to exact panel depth (±0.5mm).
Stacking – Automatic stacker.

Key features:

High load capacity – Ribbed panels support up to 500 kg per square meter.
Precision hook holes – Hooks positioned within ±0.3mm for secure beam attachment.
Heavy‑gauge capability – Handles material up to 1.5mm thick.
Quick changeover – Adjustable tooling for panel widths from 600‑1200mm.
Surface protection – Suitable for galvanized and pre‑finished steel.

Material range:

Galvanized steel (SGCC, DX51D)
Cold‑rolled steel
High‑strength steel
Thickness: 0.8‑1.5mm

Typical shelf panel specifications:

Parameter	Range
Panel width	600‑1200 mm
Panel depth	600‑1200 mm
Material thickness	0.8‑1.5 mm
Rib depth	10‑15 mm
Line speed	8‑12 m/min
Cut‑off tolerance	±0.5 mm

Load capacity:

0.8mm flat panel: up to 200 kg per shelf
1.2mm ribbed panel: up to 500 kg per shelf
1.5mm heavy ribbed: up to 800 kg per shelf

Applications:

Pallet rack shelf decks
Industrial shelving panels
Warehouse storage shelves
Riveted rack panels
Heavy‑duty storage systems

Optional features:

Perforated holes for ventilation
Embossing for brand markings
Automatic counting and stacking
Edge labeling system

Included services:

Installation guidance
Operator training
Spare parts list
12‑month warranty, lifetime remote support

Lead time: 90 working days.

Contact SAVANY with your shelf panel drawing (width, depth, thickness, rib pattern, hook hole locations) for a customized quotation.

➤
